Voltage: 12V, 24V,36V,48V, 75VDC, 155VDC(110VAC), 310VDC(220VAC)
Frequency: DC, AC50, 60Hz
Power range: 10 ~ 120W
Speed range: 200 to 3000RPM
Number of poles: 8/10P
Applications: Purifier, fresh air system, air conditioner, mixer
Plastic seal structure
Sine wave control
Drive circuit inside/outside (optional)
Vsp/PWM programmable speed regulation
Under voltage, over voltage, over heat, over current protection
Bearing anti-corrosion design
Class B insulation
IP20/IP44 protection
CCC, CE certification

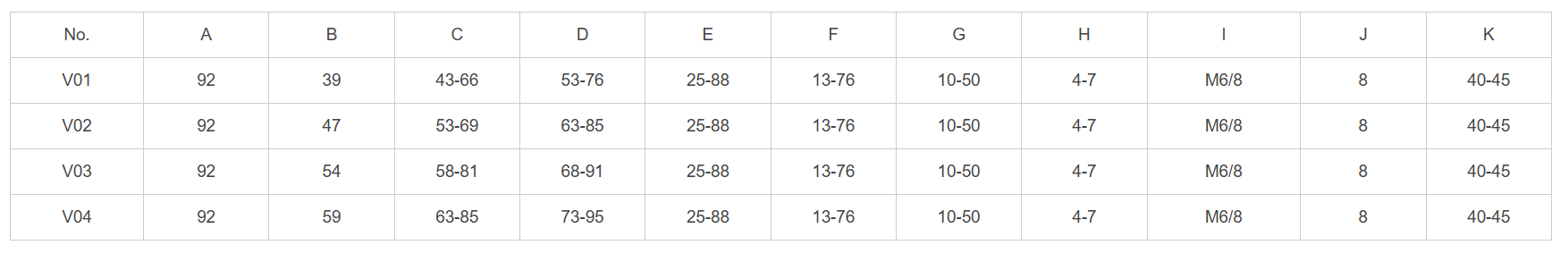

No. | A | B | C | D | E | F | G | H | I | J | K |
Ⅰ | 92 | 39 | 43-66 | 53-76 | 25-88 | 13-76 | 10-50 | 4-7 | M6/8 | 8 | 40-45 |
Ⅱ | 92 | 47 | 53-69 | 63-85 | 25-88 | 13-76 | 10-50 | 4-7 | M6/8 | 8 | 40-45 |
Ⅱ | 92 | 54 | 58-81 | 68-91 | 25-88 | 13-76 | 10-50 | 4-7 | M6/8 | 8 | 40-45 |
Ⅲ | 92 | 59 | 63-85 | 73-95 | 25-88 | 13-76 | 10-50 | 4-7 | M6/8 | 8 | 40-45 |
No. | Model （Model） | RatedVoltage （V） | Current （A） | RatedSpeed （RPM） | output Power （W） |
1 | ZFM88-0030-08D | 310DC | 0.13 | 1000 | 30 |
2 | ZFM88-0060-08D | 310DC | 0.25 | 1800 | 60 |
3 | ZFM88-0100-08D | 310DC | 0.43 | 1500 | 100 |
