Voltage: 12V, 24V,36V,48V, 75VDC, 155VDC(110VAC), 310VDC(220VAC)
Frequency: DC, AC50, 60Hz
Power range: 10 ~ 100W
Speed range: 200 to 3000RPM
Number of poles: 8/10P
Application: Fresh air system, fan coil
Iron shell construction
Sine wave control
Drive circuit inside/outside (optional)
Vsp/PWM programmable speed regulation
Under voltage, over voltage, over heat, over current protection
Bearing anti-corrosion design
Class B insulation
IP20/IP44 protection
CCC, CE certification

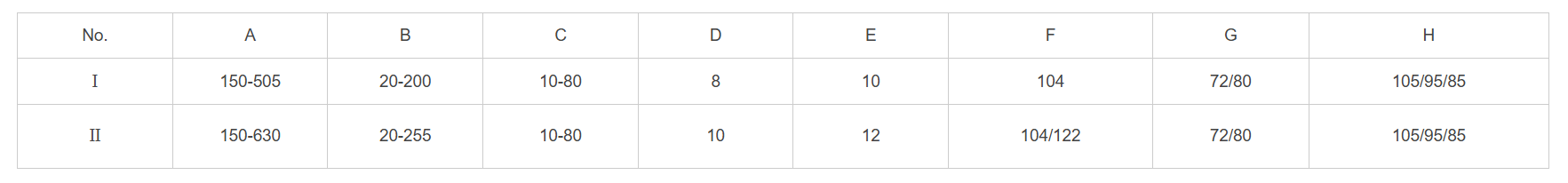

No. | A | B | C | D | E | F | G | H |
Ⅰ | 150-505 | 20-200 | 10-80 | 8 | 10 | 104 | 72/80 | 105/95/85 |
Ⅱ | 150-630 | 20-255 | 10-80 | 10 | 12 | 104/122 | 72/80 | 105/95/85 |
No. | Model （Model） | RatedVoltage （V） | Current （A） | RatedSpeed （RPM） | output Power （W） |
1 | ZWM88-0030-08S | 310DC | 0.13 | 1300 | 30 |
2 | ZWM88-0060-08S | 310DC | 0.25 | 1200 | 60 |
3 | ZWM88-0080-08S | 220AC | 0.83 | 1500 | 80 |
