Voltage: 24V,36V,48V, 75VDC, 155VDC(110VAC), 310VDC(220VAC)
Frequency: DC, AC50, 60Hz
Power range: 50 ~ 300W
Speed range: 200 to 3000RPM
Number of poles: 8/10P
Applications: fresh air system, air conditioning machine, ceiling cassette machine, air filter unit
Plastic seal structure
Sine wave control
Drive circuit inside/outside (optional)
Vsp/PWM programmable speed regulation
Under voltage, over voltage, over heat, over current protection
Bearing anti-corrosion design
Class B insulation
IP20/IP44 protection
CCC, CE certification

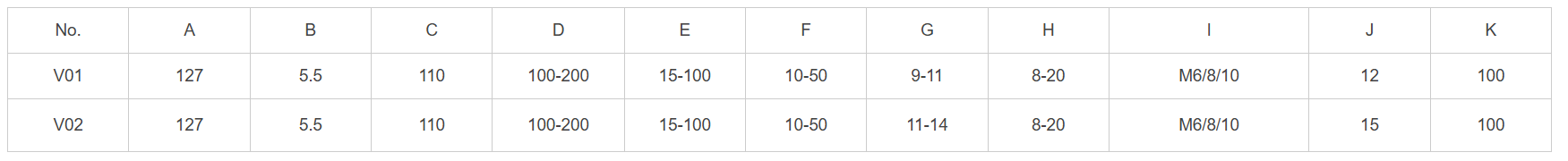

No. | A | B | C | D | E | F | G | H | I | J | K |
Ⅰ | 127 | 5.5 | 110 | 100-200 | 15-100 | 10-50 | 9-11 | 8-20 | M6/8/10 | 12 | 100 |
Ⅱ | 127 | 5.5 | 110 | 100-200 | 15-100 | 10-50 | 11-14 | 8-20 | M6/8/10 | 15 | 100 |
No. | Model （Model） | RatedVoltage （V） | Current （A） | RatedSpeed （RPM） | output Power （W） |
1 | ZFM110-0080-08D | 310DC | 0.33 | 1300 | 80 |
2 | ZFM110-0120-08D | 310DC | 0.51 | 850 | 120 |
3 | ZFM110-0250-08D | 310DC | 1.0 | 1200 | 250 |
