Product Application:
Drying fan, water heater, wall hanging stove, etc
Product performance:
Voltage: DC24/36/48/310V
Power range: 5 ~ 18W
Speed range: 500 to 8000r/min
Number of poles: 8P
Working system: S1
Thermal classification: B
Product features:
Full plastic seal structure design, compact structure, low noise, low vibration, high efficiency, long life
No hall without drive circuit, FOC control mode

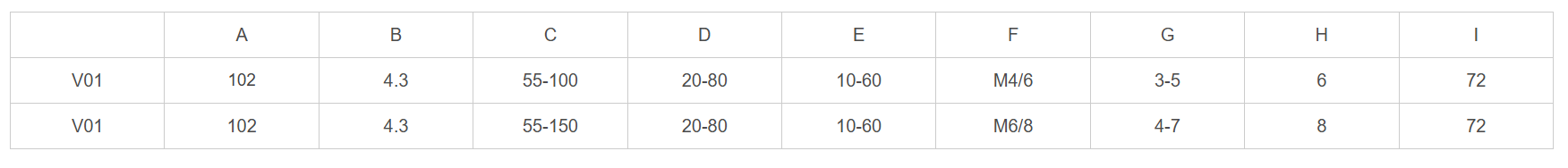

No. | A | B | C | D | E | F | G | H | I |
Ⅰ | 102 | 4.3 | 55-100 | 20-80 | 10-60 | M4/6 | 3-5 | 6 | 72 |
Ⅱ | 102 | 4.3 | 55-150 | 20-80 | 10-60 | M6/8 | 4-7 | 8 | 72 |
No. | Model （Model） | RatedVoltage （V） | Current （A） | RatedSpeed （RPM） | output Power （W） |
1 | ZFM65-0010-08D | 24DC | 0.9 | 1600 | 10 |
2 | ZFM65-0025-08D | 36DC | 1.0 | 2500 | 25 |
3 | ZFM88-0040-08D | 36DC | 1.5 | 5500 | 40 |
