Product Application:
Drying fan, water heater, wall hanging stove, air purifier, etc
Product performance:
Voltage: DC24/36/48V
Power range: 5 ~ 50W
Speed range: 500 to 15000r/min
Number of poles: 8P
Working system: S1
Thermal classification: F
Product features:

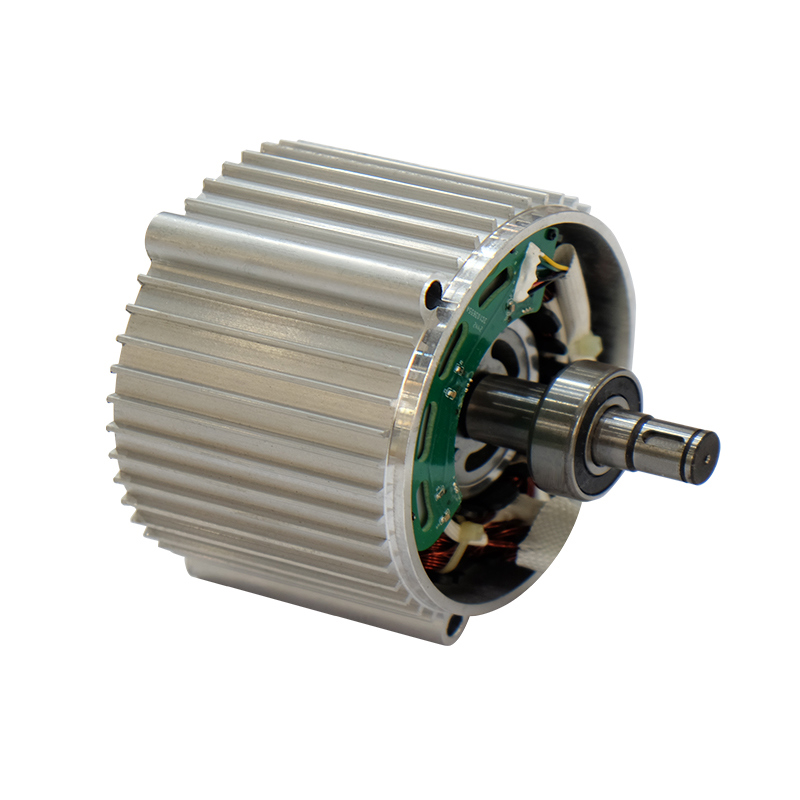

Iron shell three-phase DC brushless motor, control circuit board built-in no hall without drive circuit, sine wave control mode
Compact structure, low noise, low vibration, high efficiency, long life
Rated Voltage | output Power | Current | Speed | Working system | Insulation Level |
DC V | W | A | r/min | ||
24/36/48 | 5~50 | 0.1~2.1 | 500~15000 | S1 | F |
