- Control PCBA board encapsulated to eliminate vibration and condensation risks

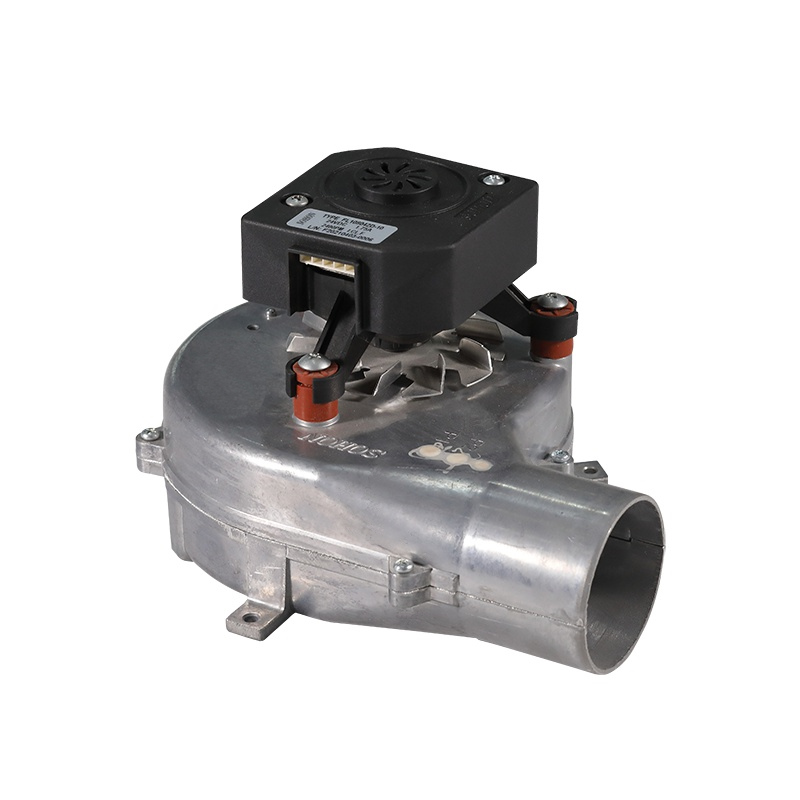

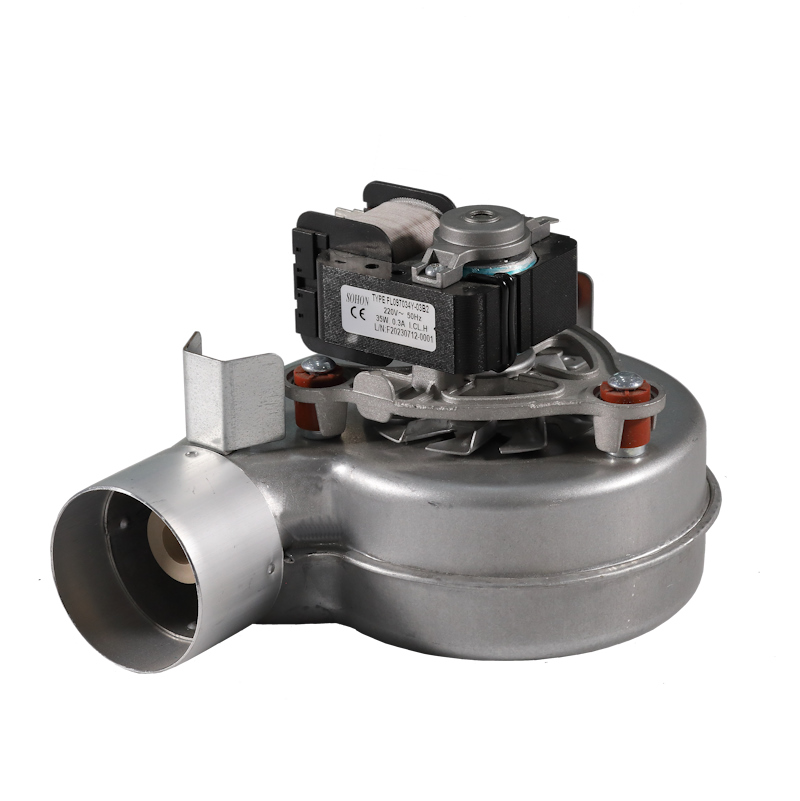

- Both sheet metal and aluminum casted scroll housing options available
- Customizable mounting plate, outlet length, and connector location
- Compact size
- Low noise/vibration
- Durable and long-lasting performance
- Safety functions: rotor stall; over-voltage; over-current; over-temp
V01 | V02 | ||
Input Voltage | [Vdc] | 24 | 24/36 |
Max. Input Power | [W] | 30 | 31 |
Max. Airflow Rate | [m3/h] | 130 | 130 |
Max. Static Pressure | [Pa] | 450 | 450 |
Motor Speed | [rpm] | 500-4000 | 450-4500 |
PWM Speed Control (@24V) | [kHz] | 1 | n/a |
Speed Feedback | [pulse/rev] | 2 | n/a |
Duty Cycle | type | S1 | S1 |
Insulation Class | type | F | F |
